Virtual Legacy Radio
Tune your rig to the DX-spot with a single mouse click!

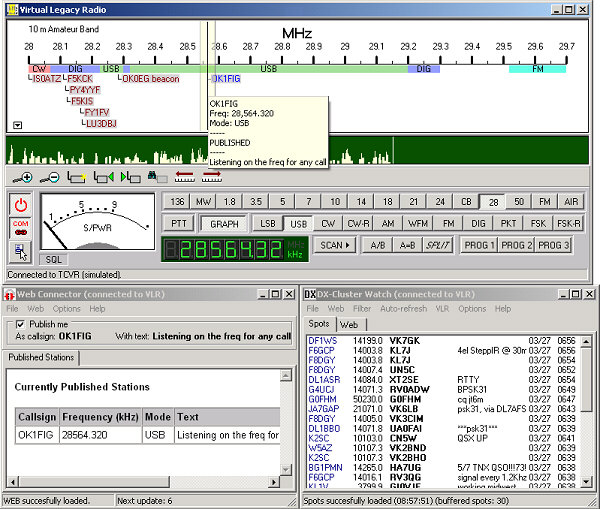

Virtual Legacy Radio (VLR) is an application that communicates with radioamateur transceivers, such as Yaesu or Icom via a serial line. It enables to control the transceiver from a PC in a convenient way. It displays the current transceiver settings (frequency, mode, and others) on the PC in an old-fashioned way that corresponds to the look of receivers in 70's.
DX-Cluster Watch (DCW) is an application that automatically refreshes a web page with the dx-cluster content, parses spot lines from it, keeps a consolidated list and inserts the spots to VLR as frequency markers.

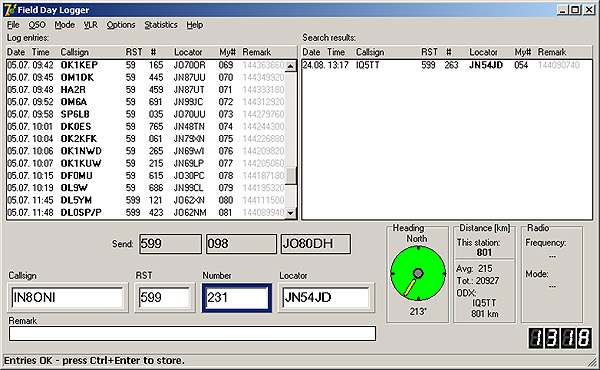

Field Day Logger (FDL) is an electronic log for VHF/UHF contests that communicates with VLR. Whenever a new QSO is entered it inserts a frequency marker into VLR. It also shows direction and distance to the other station when a complete or partial locator is entered.
Web Connector (WC) is an application that updates a dedicated web page with your callsign, frequency and mode. At the same time, it reads this page, parses the information from it and inserts it into the analog scale as frequency markers. Therefore, the other VLR users can see yourself as frequency marker in the scale and you can see them.

PC Platforms: Windows 98/ME/NT/2000/XP/Vista
Supported transceivers: FT-817, FT-847, FT-857, FT-897

Download Virtual Legacy Radio Now (latest version, installer/uninstaller, about 1MB to download)





This is how the scale of VLR looked like at the end of the Field Day 2009 (using Field Day Logger):

Version history (last entry first)

VLR
Version
DCW
Version
WC
Version
Date of Release Changes Remark
- - - August 24th,
2009
Added a new application, Field Day Logger. Currently as a beta version, but has been very successfully used during Field Day 2009.
- 1.0.3.0 - July 8th,
2008
VLR:
Added the new band PMR with new fq markers
DCW:
It is possible to set the filter to more bands at a time
It is possible to set the filter to "referees only..."
It is possible to triger a specified action when a desired spot occurs.
www.dxsummit.fi fixed (they have changed the web layout)

1.0.9.0 - - November 1, 2007 VLR:
Fix in the data-integrity check (caused COM link to drop).
Optional captions for mode color strips.
CTCSS tones for Frequency Markers.
This time my thanks belong to Fred, N4CLA, for useful discussion about CTCSS and the tests he made.
1.0.8.0 1.0.2.0 1.0.0.0 March 27, 2007 VLR:
It is possible to scroll the scale horizontally.
Hint windows for band buttons.
Scale can show mode ranges.
Extended and improved possibilities of the scale zooming.
Scan can optionally run only within the analog scale selection.
New application, Web Connector. This enables the other VLR users to see you as a freq marker.
Bugfixes:
It was not possible to start VLR on Win95/98. This is fixed now (missing MS Script Control)
Some reported empty list of COM ports in the combo box (Win 98 only). It is fixed now.
VLR crashed when COM button clicked (Win 98 only). This is now fixed.

1.0.7.0 1.0.1.0 - March 4, 2007 VLR:
Digital scale, which is also "editable" to enter a new frequency numerically from the keyboard.
Analog scale shows hint windows for freq markers.
DCW can be started and closed automatically along with VLR
New buttons [A/B], [A=B] and [Split].
Combo box for COM selection shows also a user friendly description (similar to what can be seen in Windows Device Manager).
VLR now "learns" length of responses during CAT connection. This enables to optimize communication speed.
User definable keystrokes (tuning step) and mouse behaviour (double click, wheel).
Search for frequency marker feature.
Three programmable buttons (VBScript).
DCW:
Filter menu shows number of spots for this or that band.
Application button caption shows progress (convenient when DCW is minimized).
Command line -m to start DCW minimized.
Installer:
When installing over an existing installation the user is prompted whether to overwrite files Bands.tsv and FqMarkers.tsv.
Bug fixes:
Corrected handling of port COM10 and higher.
Some problems with FT-847 persist. It looks that even that FT-847 uses (almost) the same CAT commands as FT-817/857/897, it behaves differenly in some details. Users of FT-847 please try out version 1.0.8.0 as soon as it is released.
1.0.6.0 1.0.0.0 - Feb 1, 2007 Added support for FT-847.
A new tool bar added. Visibility of the tool bar and the spectrograph is optional.
The main window is freely resizable now.
More band buttons, right-click on band buttons for selection of an 'invisible' band.
Fix in fq markers scan (change of mode).
FT-847 needs an extra command (CAT-ON) to be sent prior any other communication is commenced. My thanks to Emil, OK2WD for tests he made.
1.0.5.0 1.0.0.0 - Jan 28, 2007 First client for VLR, DX-Cluster Watch. It inserts spots into the scale as frequency markers.
1.0.4.0 - - Jan 22, 2007 New options for Spectrograph.
Fix in simulated connection.
CAT communication re-written (changed from anynchronous to synchronous).
Data integrity check added (CAT communication).
It seems that firmwares differ. Some FT's return exactly 1 byte as a response to all commands except 03, E7 and F7, some ot them return 2 characters.
This versions takes this into account. This way it fixes erratic behaviour of GUI that some users experienced.
My big thanks to Jeff, N7YG for his useful hints about CAT communication.
1.0.2.0 - - Jan 11, 2007 Reliability of connection to TCVR enhanced significantly.
1.0.1.0 - - Jan 8, 2007 Added DTR/RTS control.
1.0.0.0 - - Dec 26, 2006 New virgin release.
