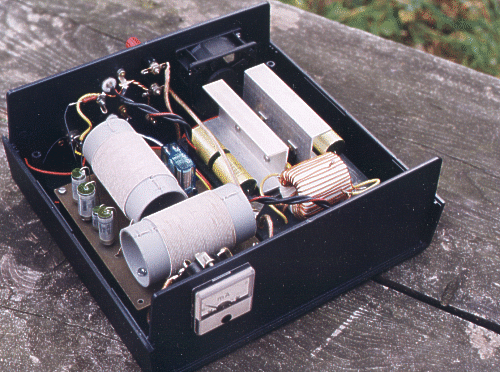

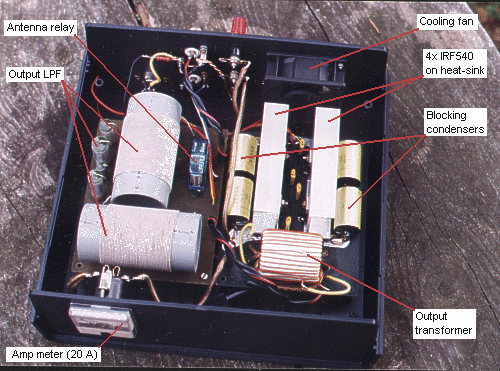

500 W PA with 4x IRF540

This PA is designed to survive up to 20 Amps. The supply voltage can range up to about 60 Volts.
The schematic is based on the popular G3YXM's design.

See the exciter that drives this PA.
